Aluminium & glass Fabrication, fixing & cladding Ganemulla Since 2019
Aluminium & glass, cut to your opening.
Windows, doors, partitions, shopfronts and cladding, made to the size of the space they fill and fixed on site. Send us the sizes on WhatsApp for a quote.
Or call 077 261 9341
- Drawing
- Sliding window
- Sheet
- 01 / 06
- Units
- mm
- Note
- Two panels, one slides behind the other.
- Drawing
- Casement window
- Sheet
- 02 / 06
- Units
- mm
- Note
- Hinged at the sides, opening out from the middle.
- Drawing
- Top-hung window
- Sheet
- 03 / 06
- Units
- mm
- Note
- A top sash that opens out, over a fixed light.
- Drawing
- Fixed glass
- Sheet
- 04 / 06
- Units
- mm
- Note
- One pane, no sash. The most light for the money.
- Drawing
- Sliding door
- Sheet
- 05 / 06
- Units
- mm
- Note
- A sliding glass door onto a verandah.
- Drawing
- Glass partition
- Sheet
- 06 / 06
- Units
- mm
- Note
- An office partition with a glass door.
01What we make
Fifteen product lines in aluminium and glass.
Grouped the way a building uses them. Choose a family to see every line in it, what each one is for, and what to send for a price.
- Fixing and cladding Aluminium and glass fixed on site, and facades and fascias clad in panels.

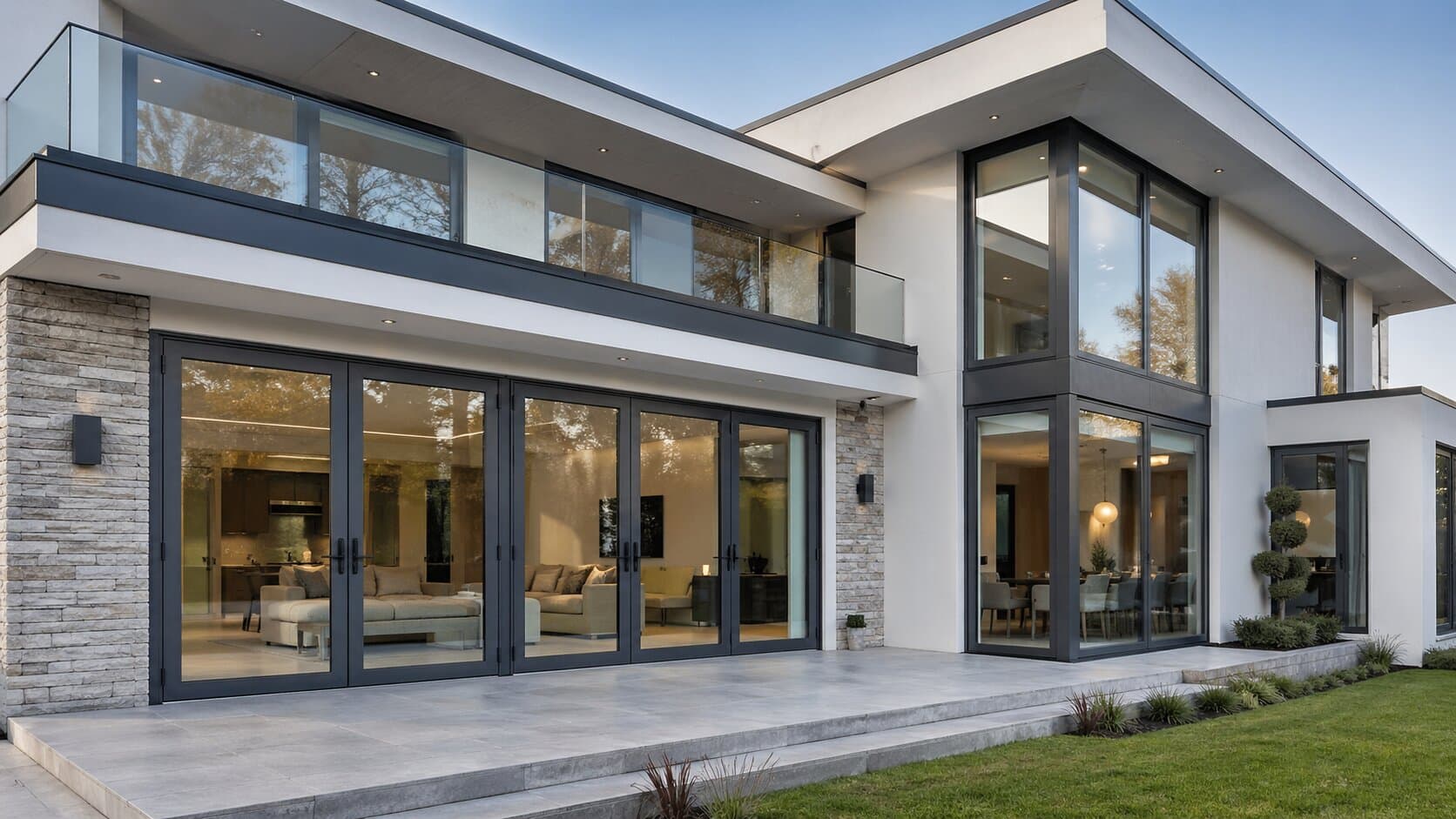

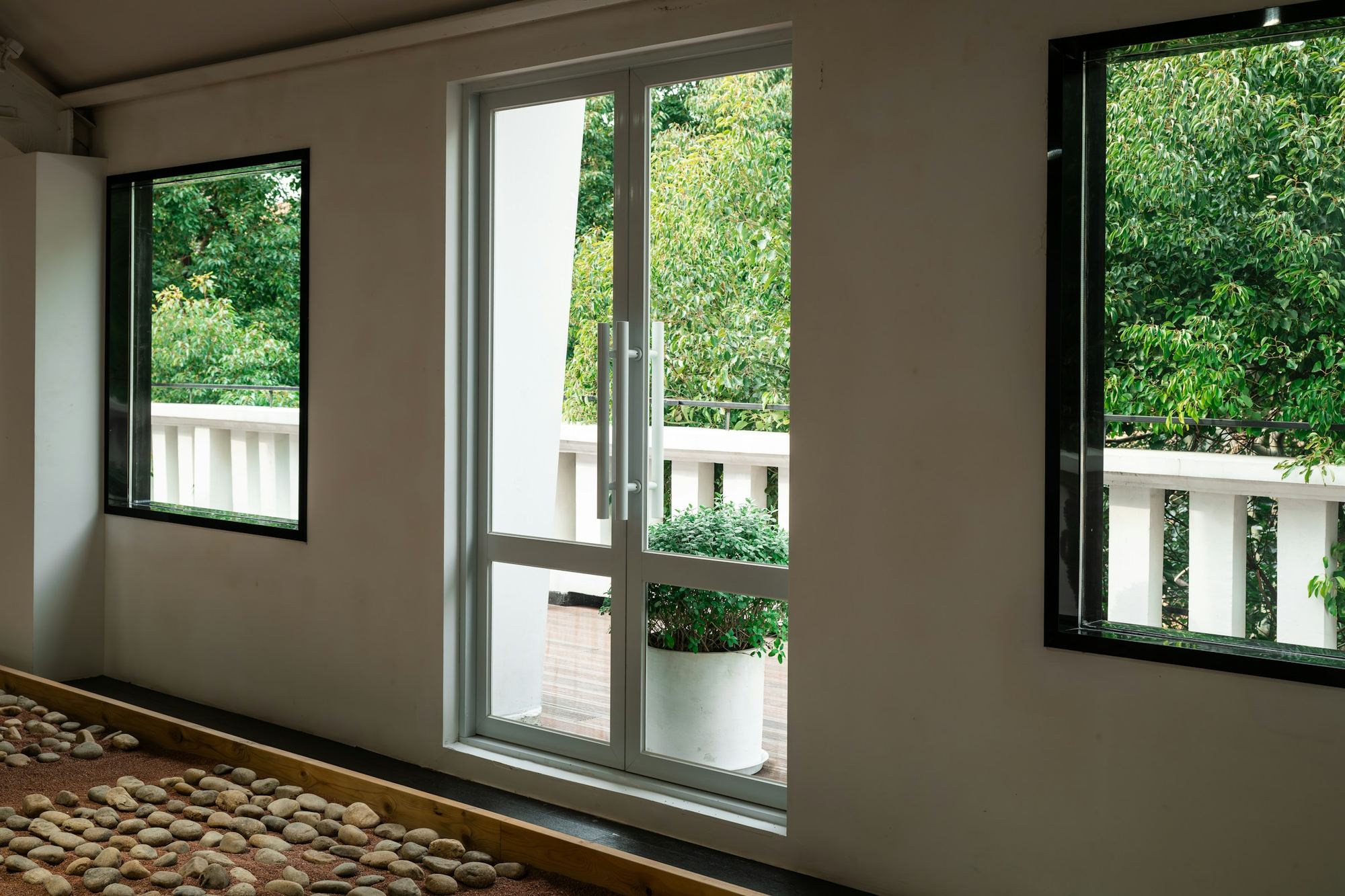

- Windows Sliding, casement, top-hung, fixed and louvred, in aluminium frames.

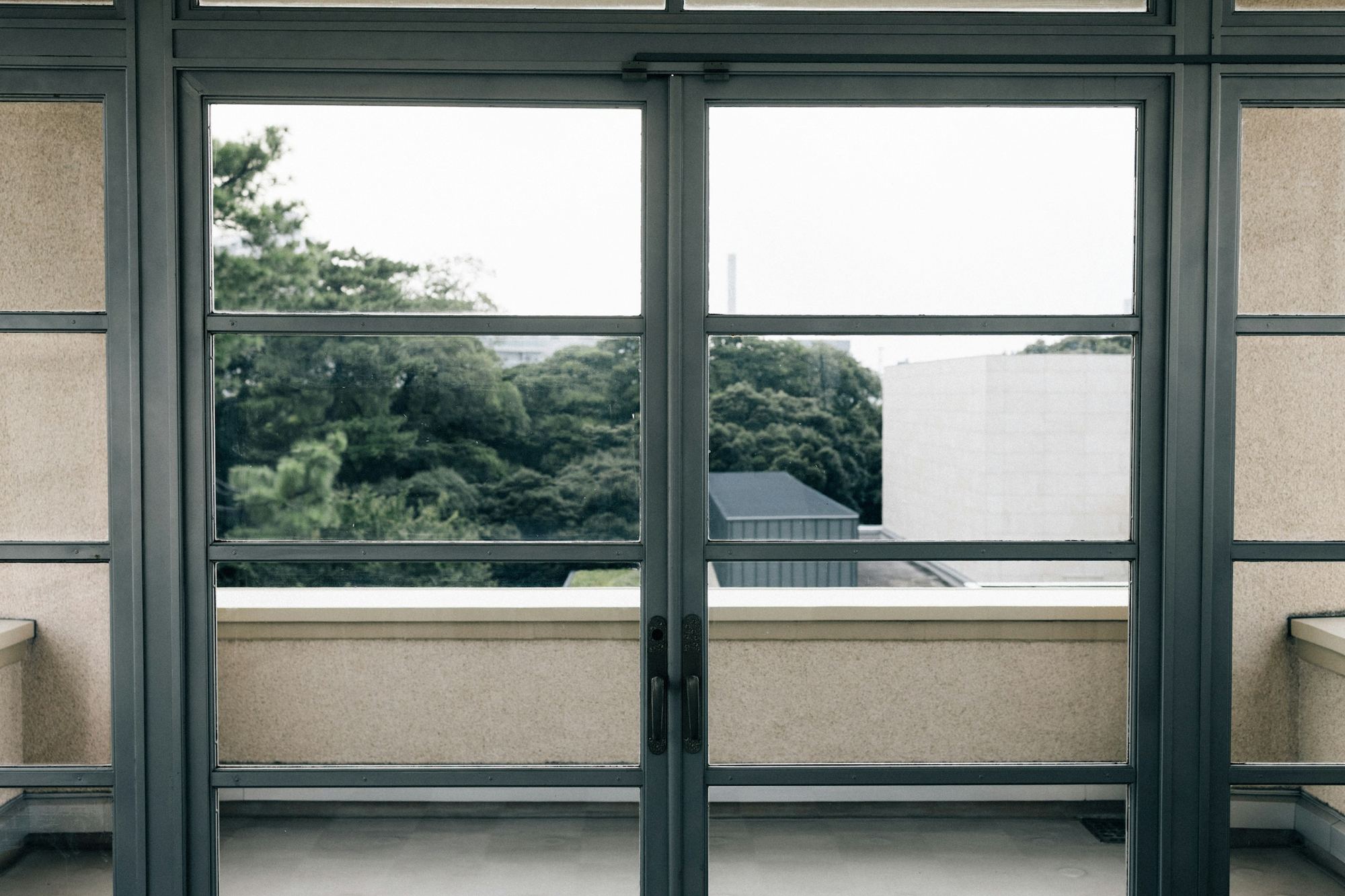

- Doors Sliding, hinged, folding, security and automatic doors.

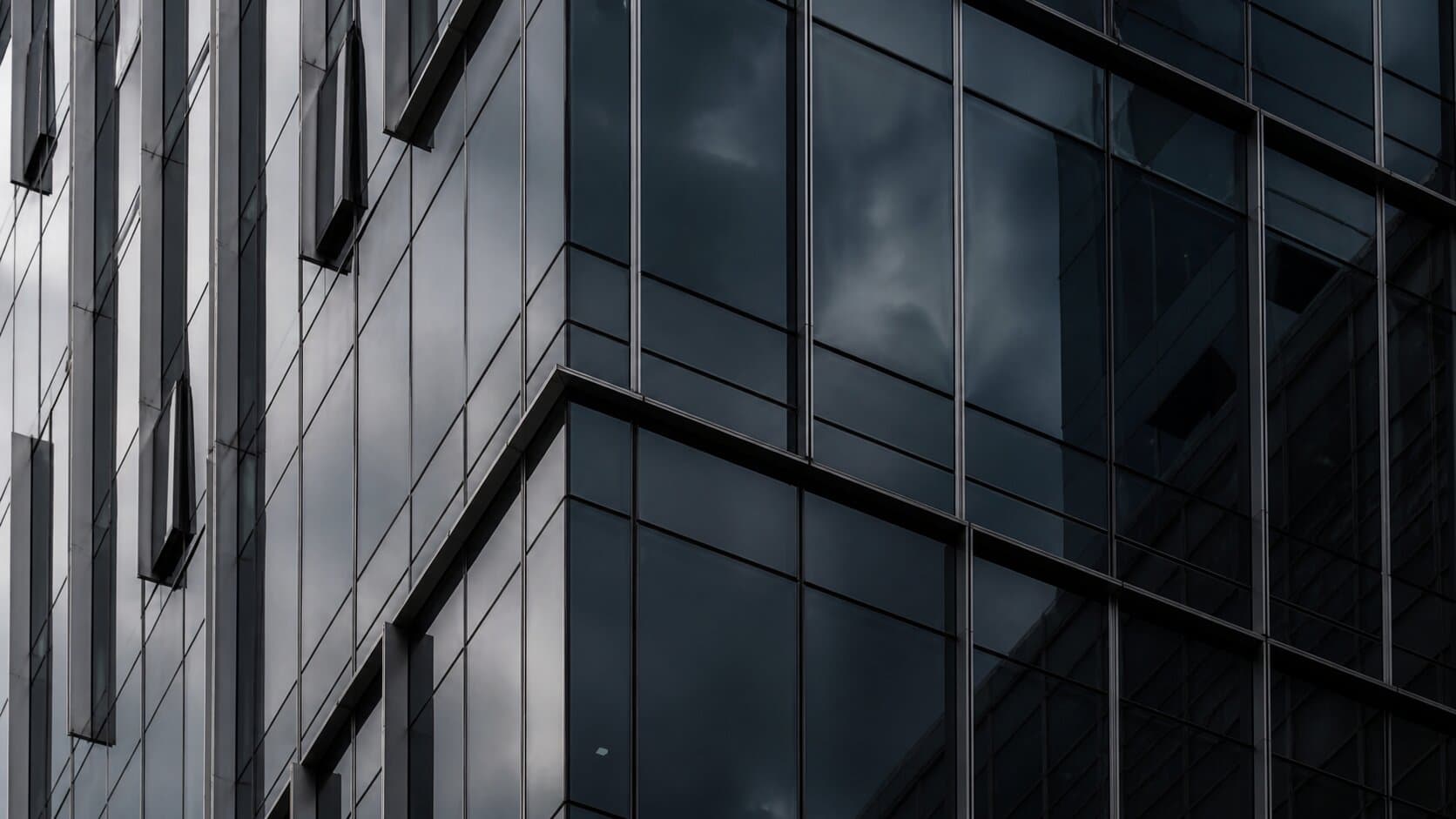

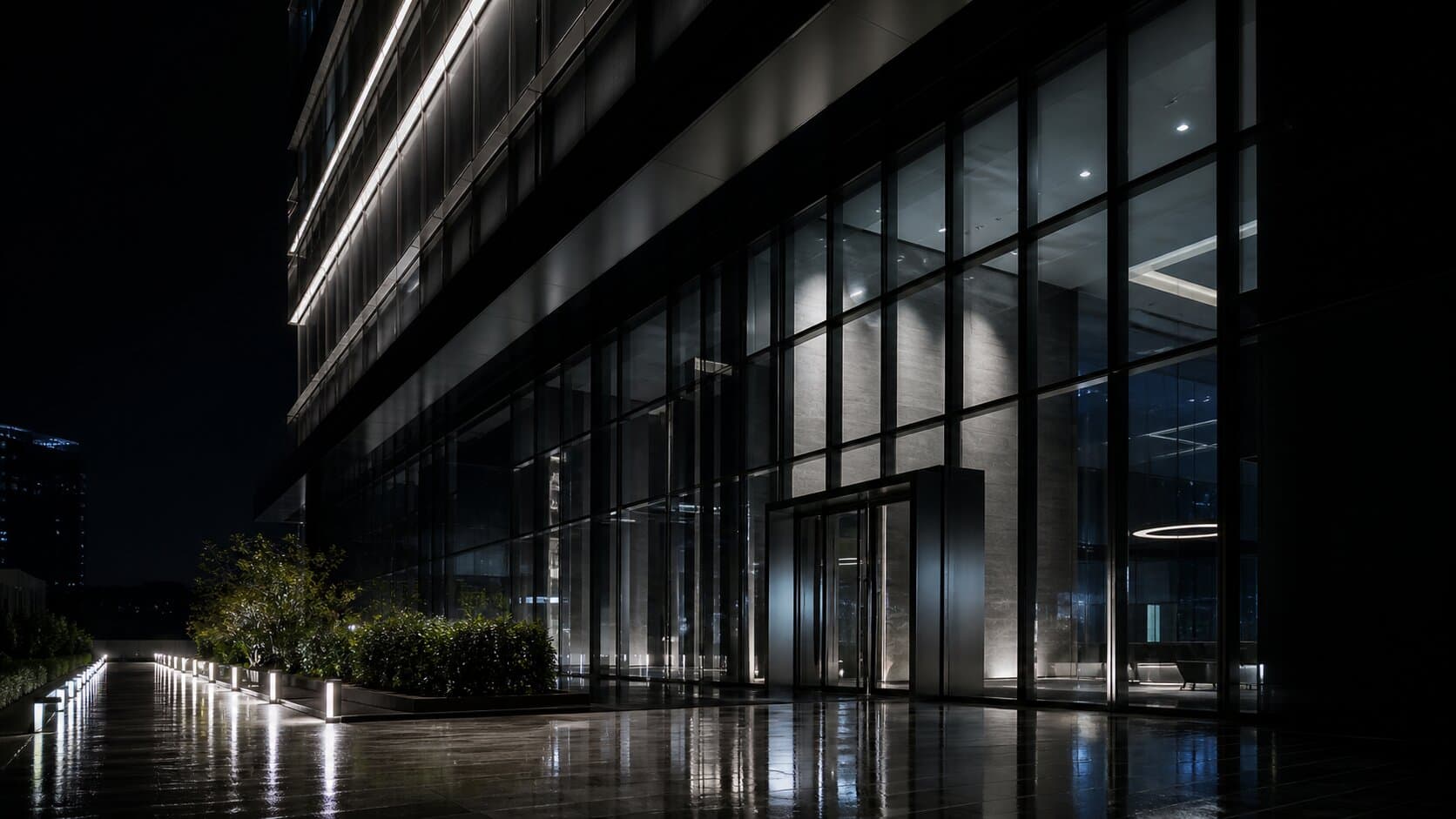

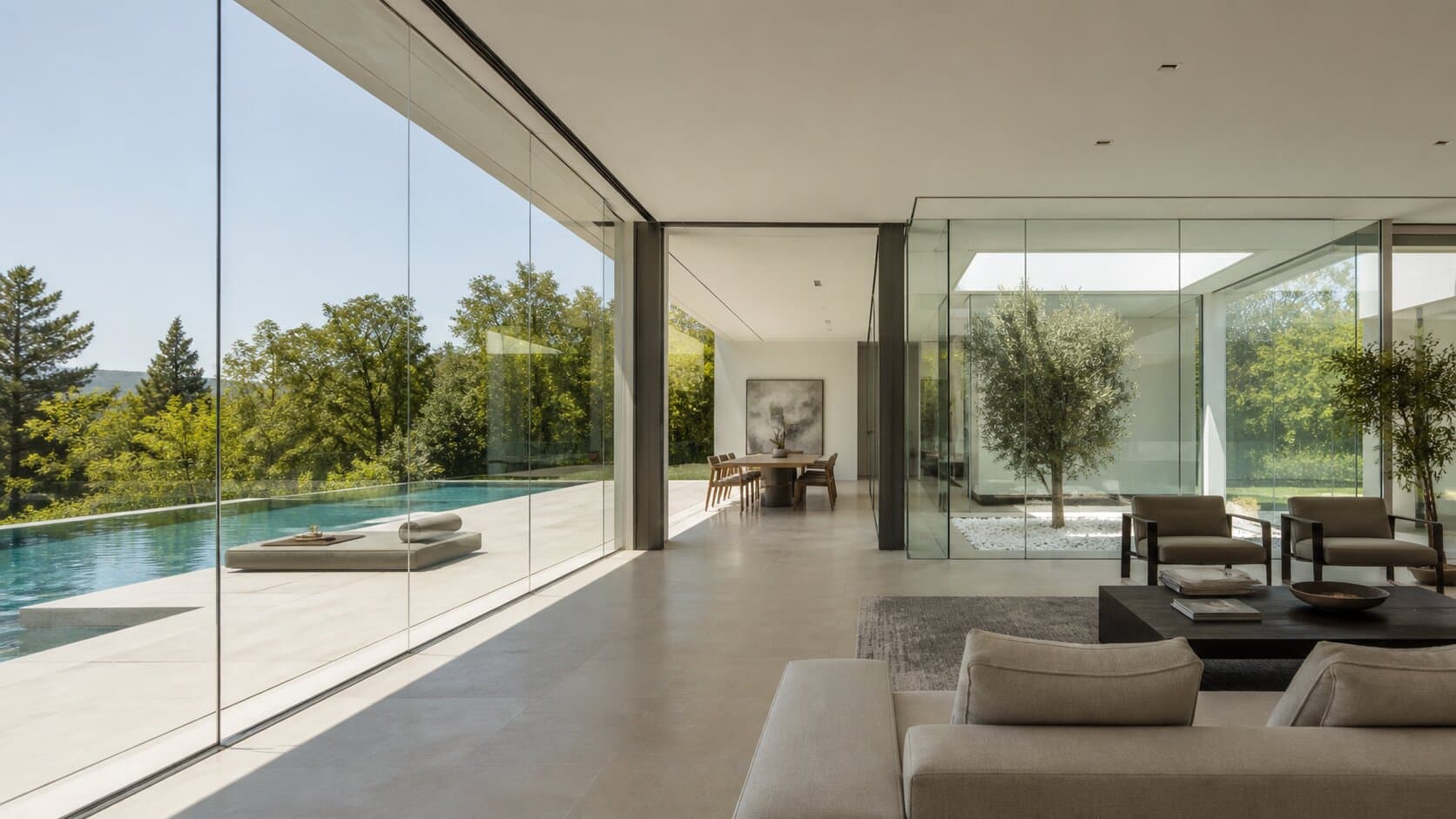

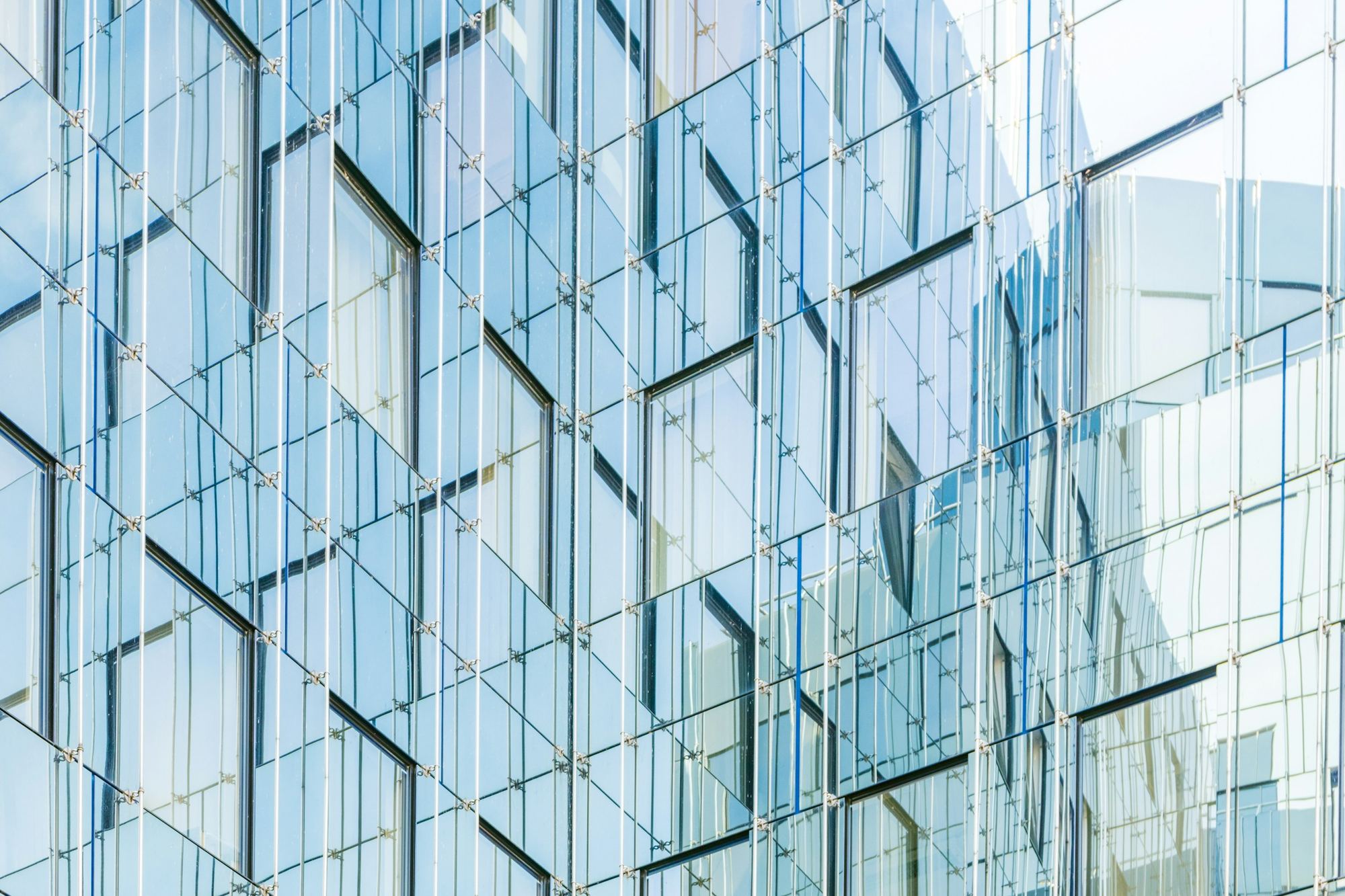

- Facades and shopfronts Curtain walls and frameless glass fronts.

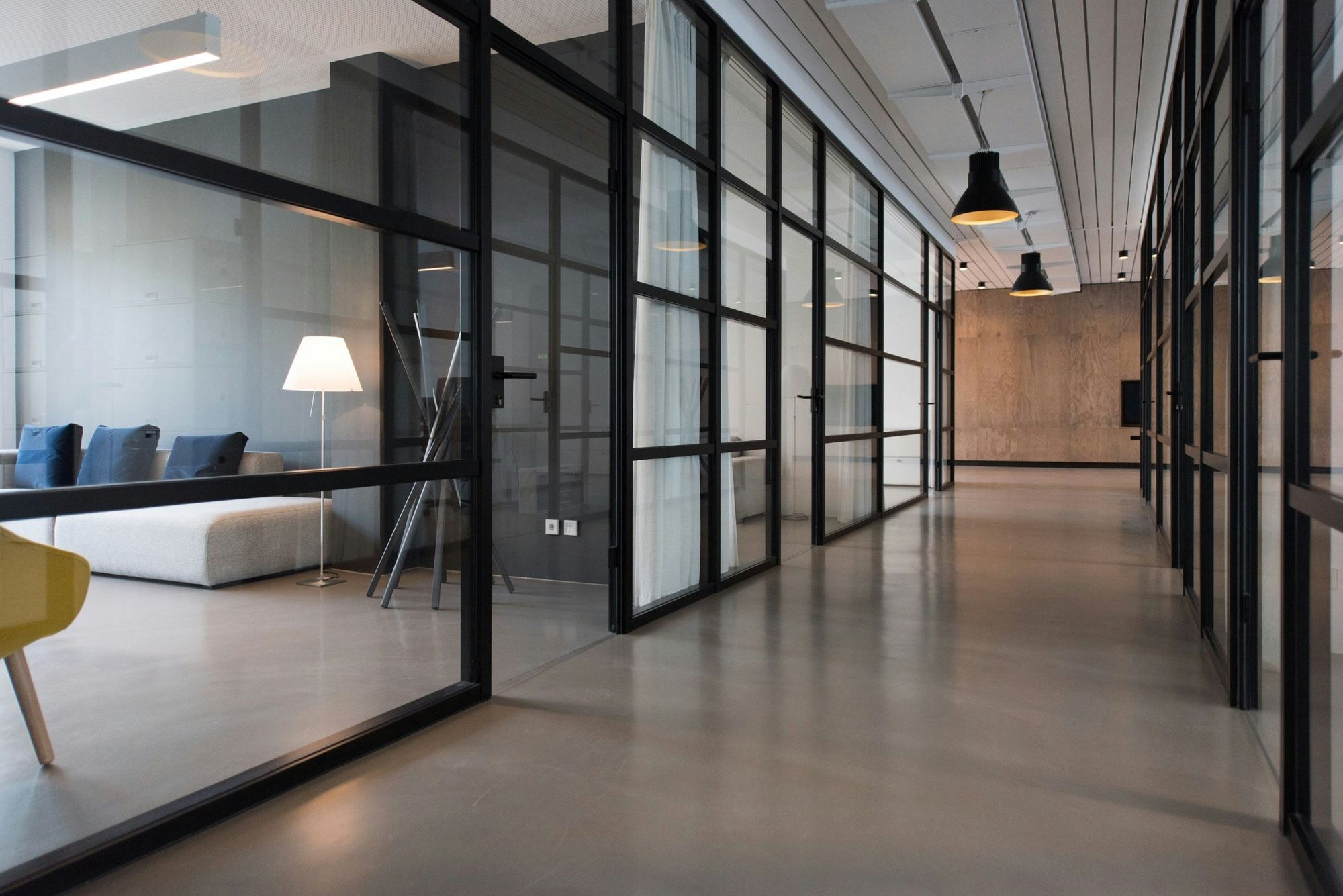

- Interiors Office partitions, shower screens, mirrors and ceilings.

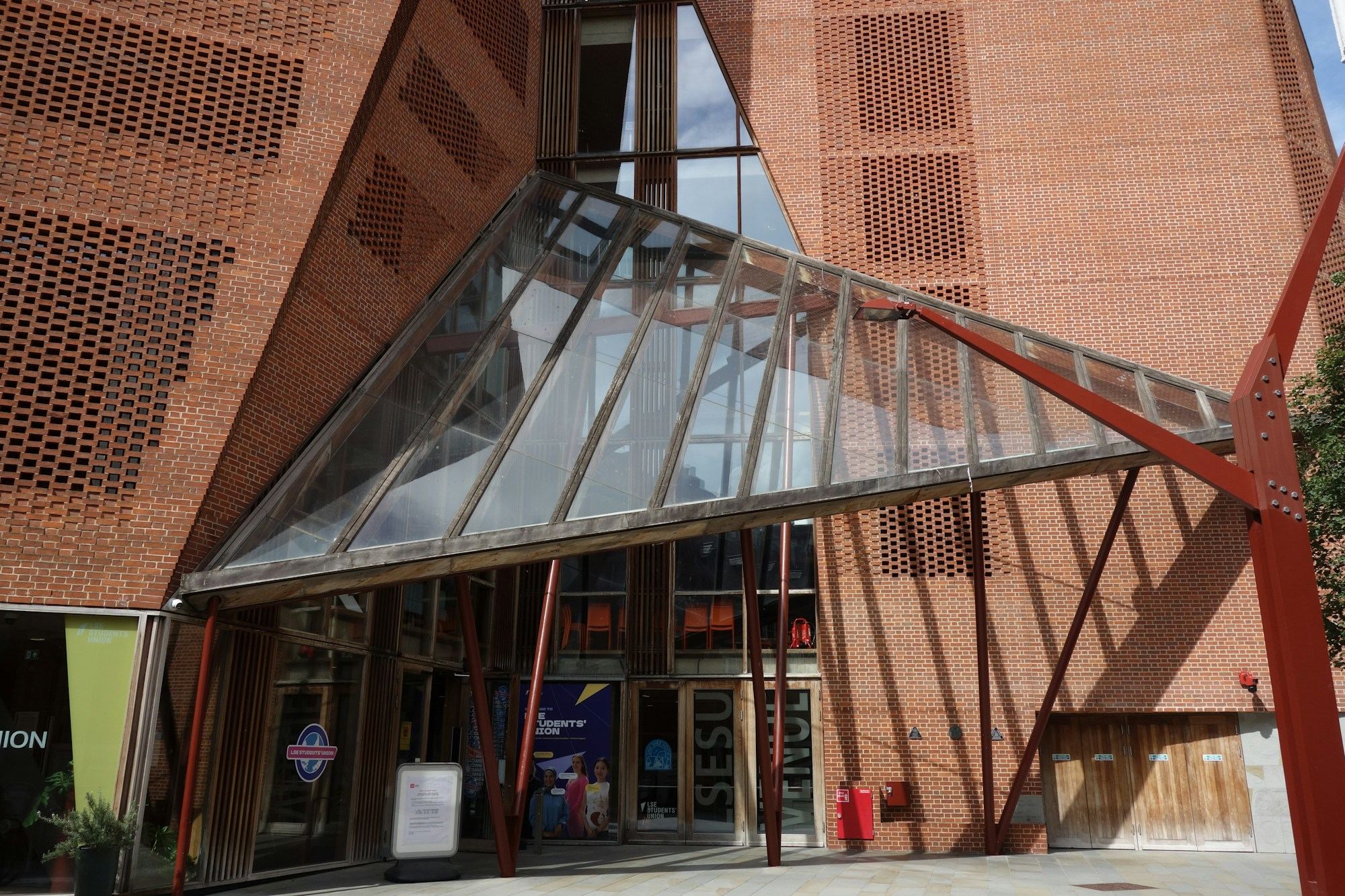

- Skylights and canopies Glass and polycarbonate over roofs, porches and entrances.
02Fixing and cladding
Fixing is in our name.
Aluminium & Glass Fixing Specialists. Frames, glazing and cladding are set, sealed and adjusted on site, whether they came out of the Pehesara workshop or were supplied by the builder.
-

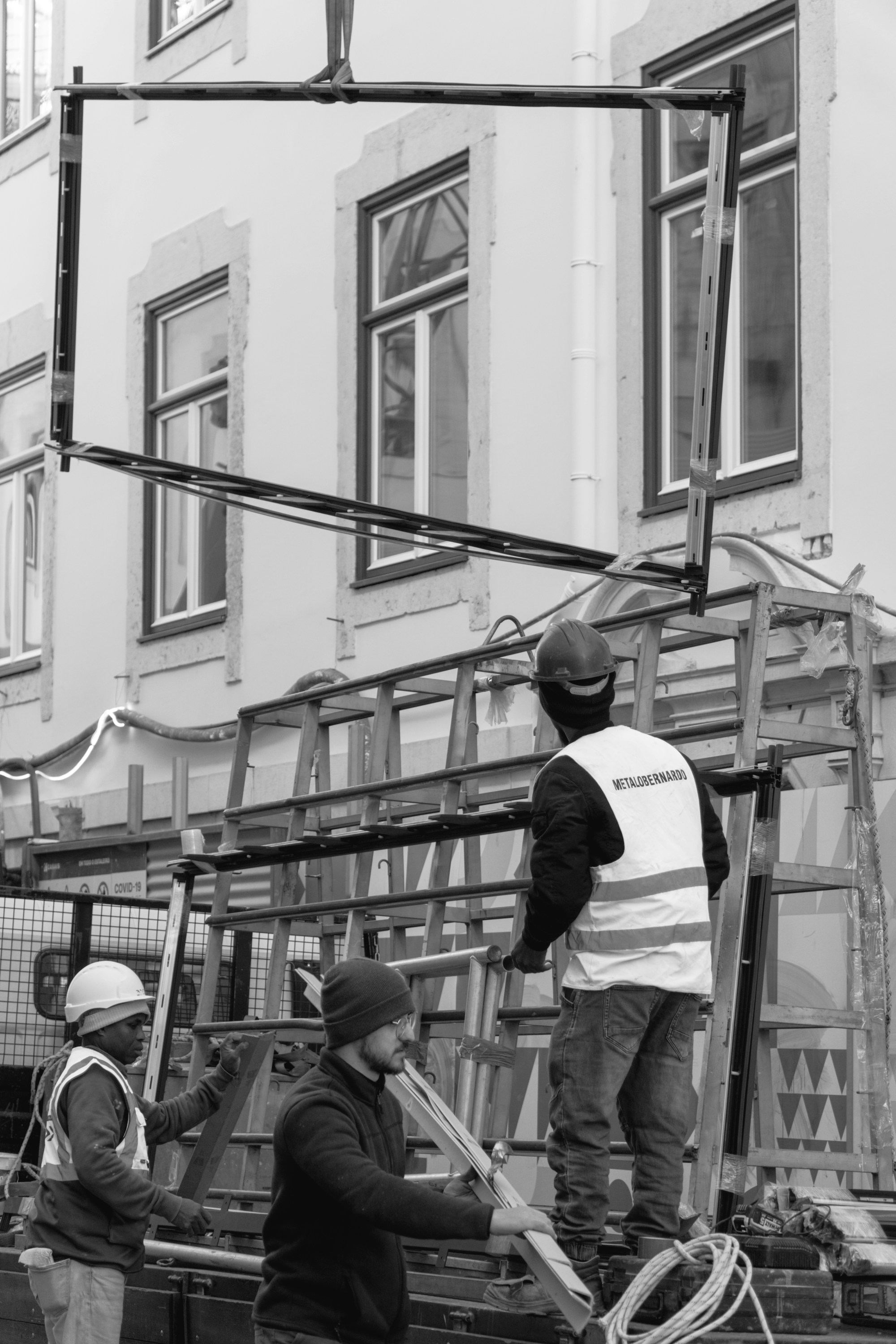

Fixing and installation
Aluminium and glass fixed on site: frames set true in their openings, glazed, sealed and adjusted, including fix-only work for builders.
- Frames set level and square, anchored and sealed
- Glazing, partitions, shower screens and mirrors
- Fix-only work when the materials are supplied
-

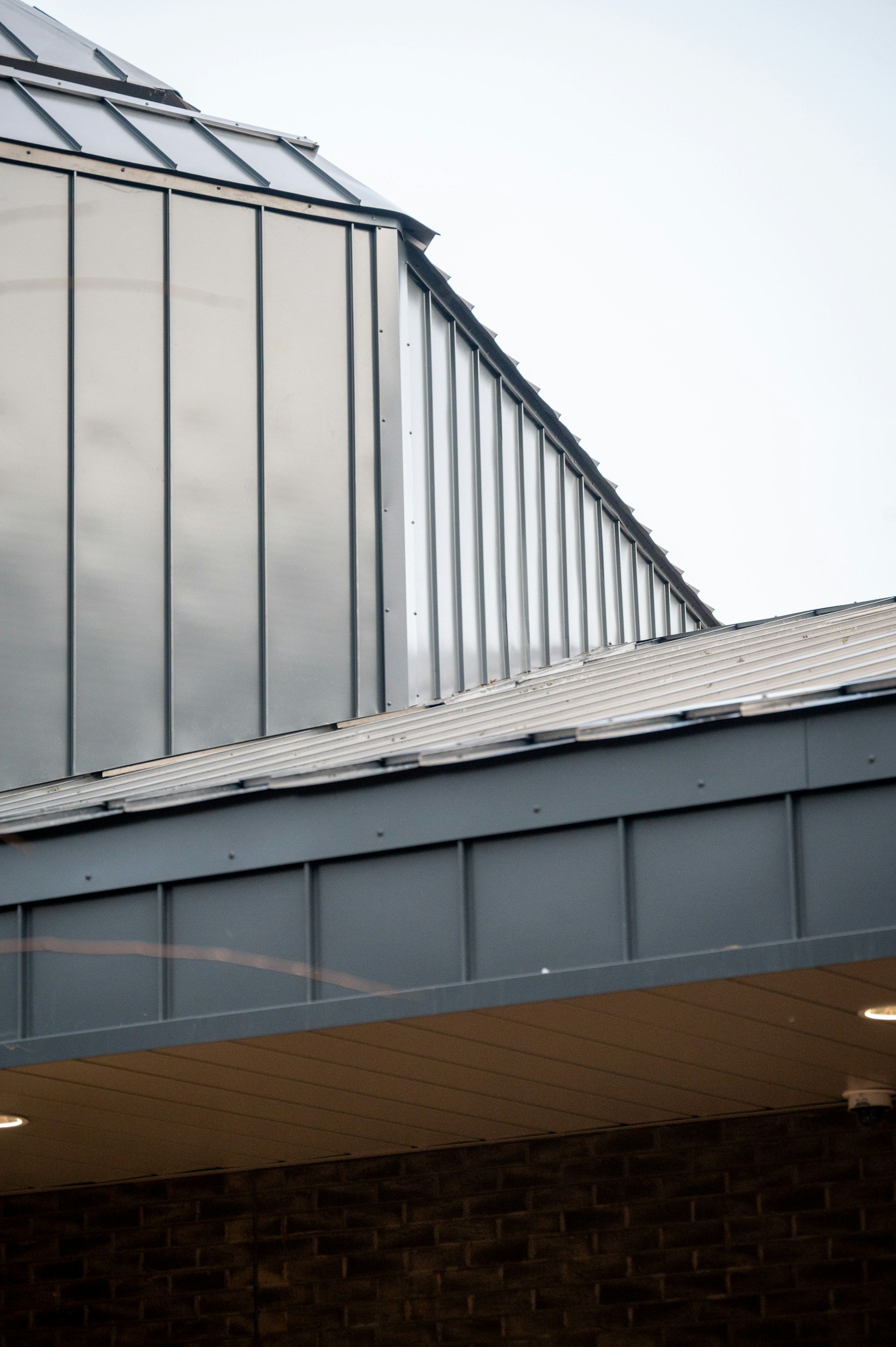

Cladding works
Aluminium composite and aluminium sheet panels fixed to a subframe, for facades, shopfronts, fascias and signage bands.
- Aluminium subframes fixed to the wall
- Aluminium composite and aluminium sheet panels
- Shopfronts, fascias, signage bands and columns
No two openings are the same size. The frame that fills one should not be either.
Every frame is cut to the opening it will fill, so the gaps a standard size leaves behind never have to be packed with sealant.
03Choosing a window
How it opens decides everything else.
The same opening can take any of these five. Each one is right somewhere and wrong somewhere else, and the table says where.
| Sliding | Casement | Top-hung | Fixed | Louvre | |
|---|---|---|---|---|---|
| Opens to | About half its width | Its full width | Part way, at the bottom | It does not open | Almost fully, and adjustable |
| Against driving rain | Closes well | Closes tightest | Closes tight | Tightest of all | Poorly |
| Room it needs | None | Clear space outside | Clear space outside, low | None | None |
| Air in light rain | No | A little | Yes | None | Yes |
| Choose it for | Wide openings onto a path or balcony, where nothing can swing | Bedrooms and living rooms that want the most air | Bathrooms and kitchens, and high openings | Stairwells, views and tall glass, next to one that opens | Rooms that need air all day, without air conditioning |
-
Sliding
- Opens to
- About half its width
- Against driving rain
- Closes well
- Room it needs
- None
- Air in light rain
- No
- Choose it for
- Wide openings onto a path or balcony, where nothing can swing
-
Casement
- Opens to
- Its full width
- Against driving rain
- Closes tightest
- Room it needs
- Clear space outside
- Air in light rain
- A little
- Choose it for
- Bedrooms and living rooms that want the most air
-
Top-hung
- Opens to
- Part way, at the bottom
- Against driving rain
- Closes tight
- Room it needs
- Clear space outside, low
- Air in light rain
- Yes
- Choose it for
- Bathrooms and kitchens, and high openings
-
Fixed
- Opens to
- It does not open
- Against driving rain
- Tightest of all
- Room it needs
- None
- Air in light rain
- None
- Choose it for
- Stairwells, views and tall glass, next to one that opens
-
Louvre
- Opens to
- Almost fully, and adjustable
- Against driving rain
- Poorly
- Room it needs
- None
- Air in light rain
- Yes
- Choose it for
- Rooms that need air all day, without air conditioning
04How a job runs
From a photo on your phone to a fitted frame.
-
01
Talk
Send photographs and rough sizes on WhatsApp, or call. Say what each opening is for and what you have in mind.
-
02
Measure
Each opening is measured on site at three points across and three up, and the walls are checked for level and square.
-
03
Drawing and quote
Every opening is drawn with its size, how it opens, the glass and the finish, and priced against the drawing.
-
04

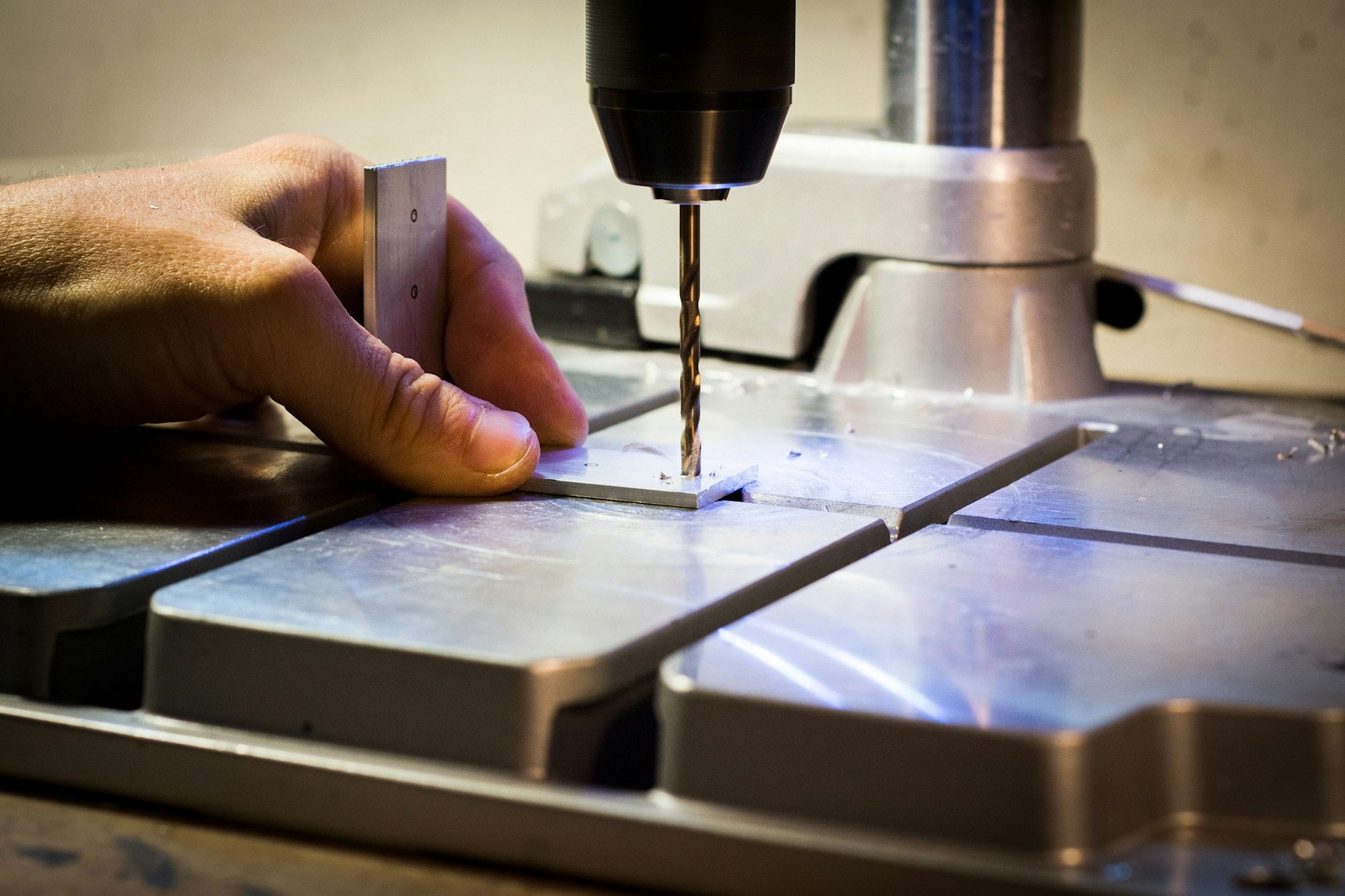

Fabrication

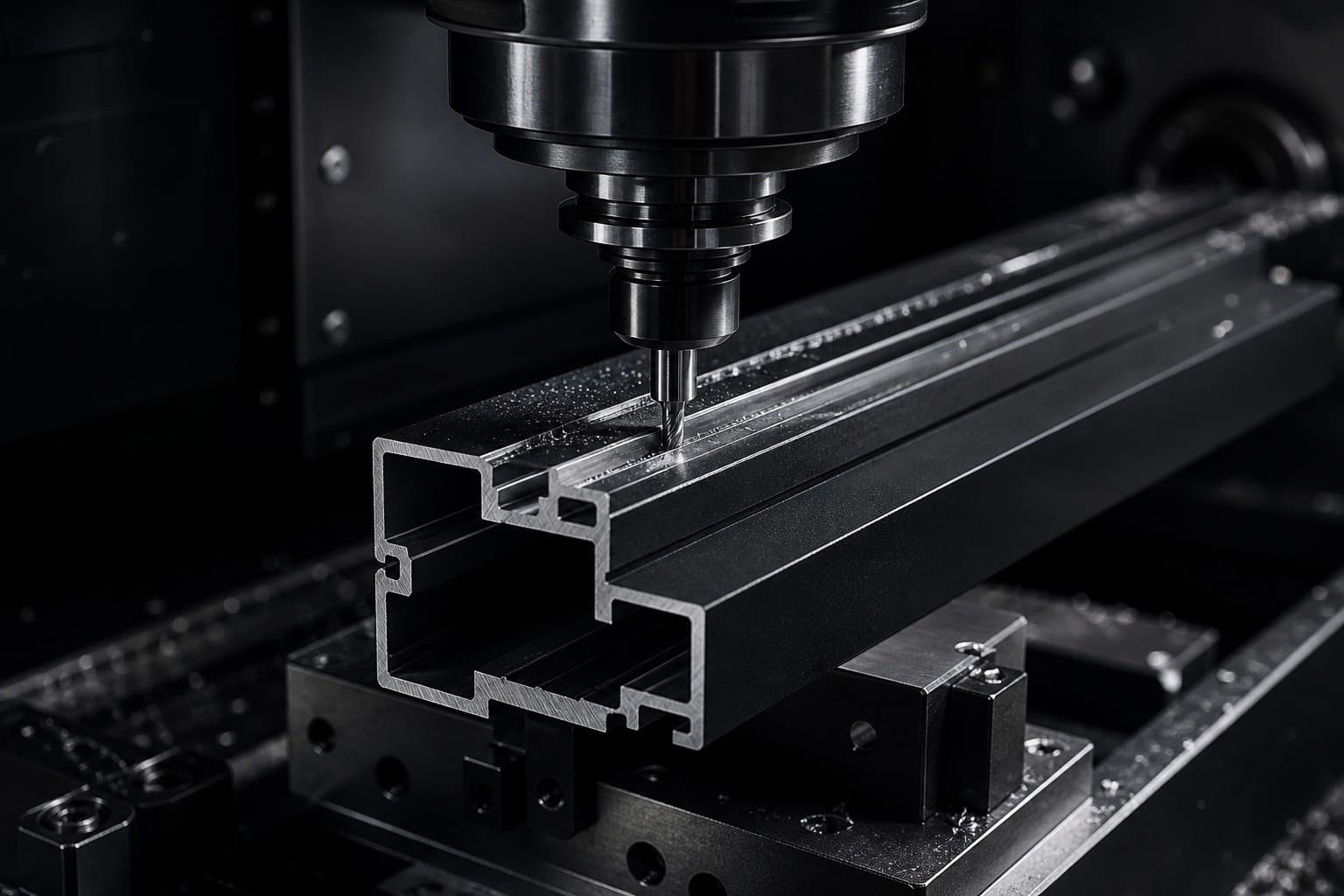

The aluminium sections are cut, drilled and joined to the drawing, and the glass is cut to the frame it goes into.
-
05
Fitting
Frames are fixed, sealed and glazed on site, and every sash and door is run open and shut before it is handed over.
The quote list
Send every size in one message.
List each opening, its width and height, how it should open, the glass and the finish. The quote list turns it into one tidy WhatsApp message, and it adds up the glass area as you go.
